Automated Laser Cleaning
Robotic Laser Cleaning
Diodela UK supplies advanced laser cleaning systems in the United Kingdom and Ireland, offering significant benefits for integrators across a wide range of industrial applications. Designed with flexibility and modularity in mind, these systems can be easily integrated into existing production lines. With high precision (up to 0.1 mm) and Galvano-scanner speeds of up to 10 m/s, the systems help reduce cycle times and improve productivity. Advanced control features, including vision, GPS and process tracking, enable accurate parameter configuration and real-time monitoring. Tailored solutions are available to meet specific industry requirements, while comprehensive technical support and training ensure smooth integration and reliable performance.
Full Solution for End Applications (Cell)

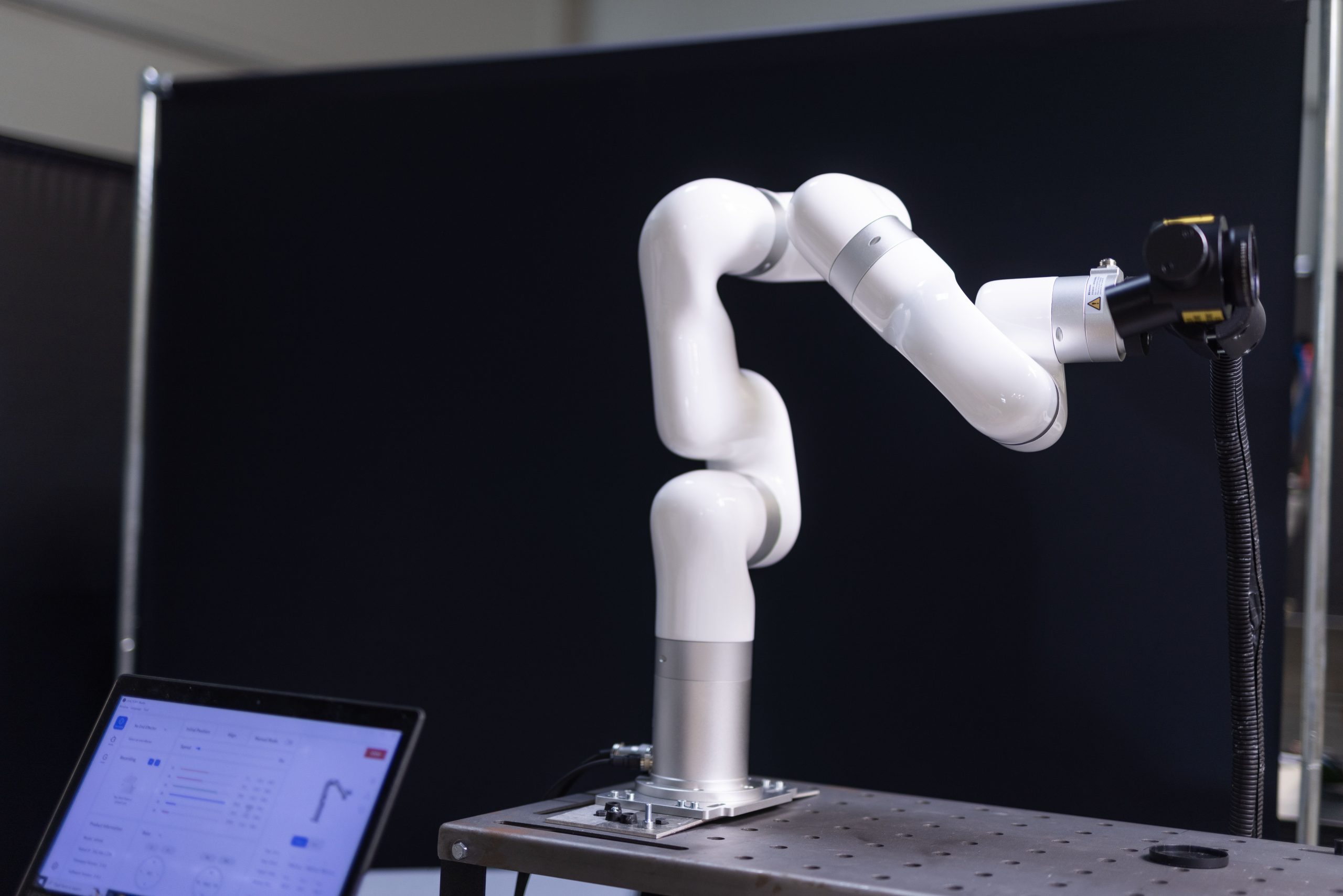

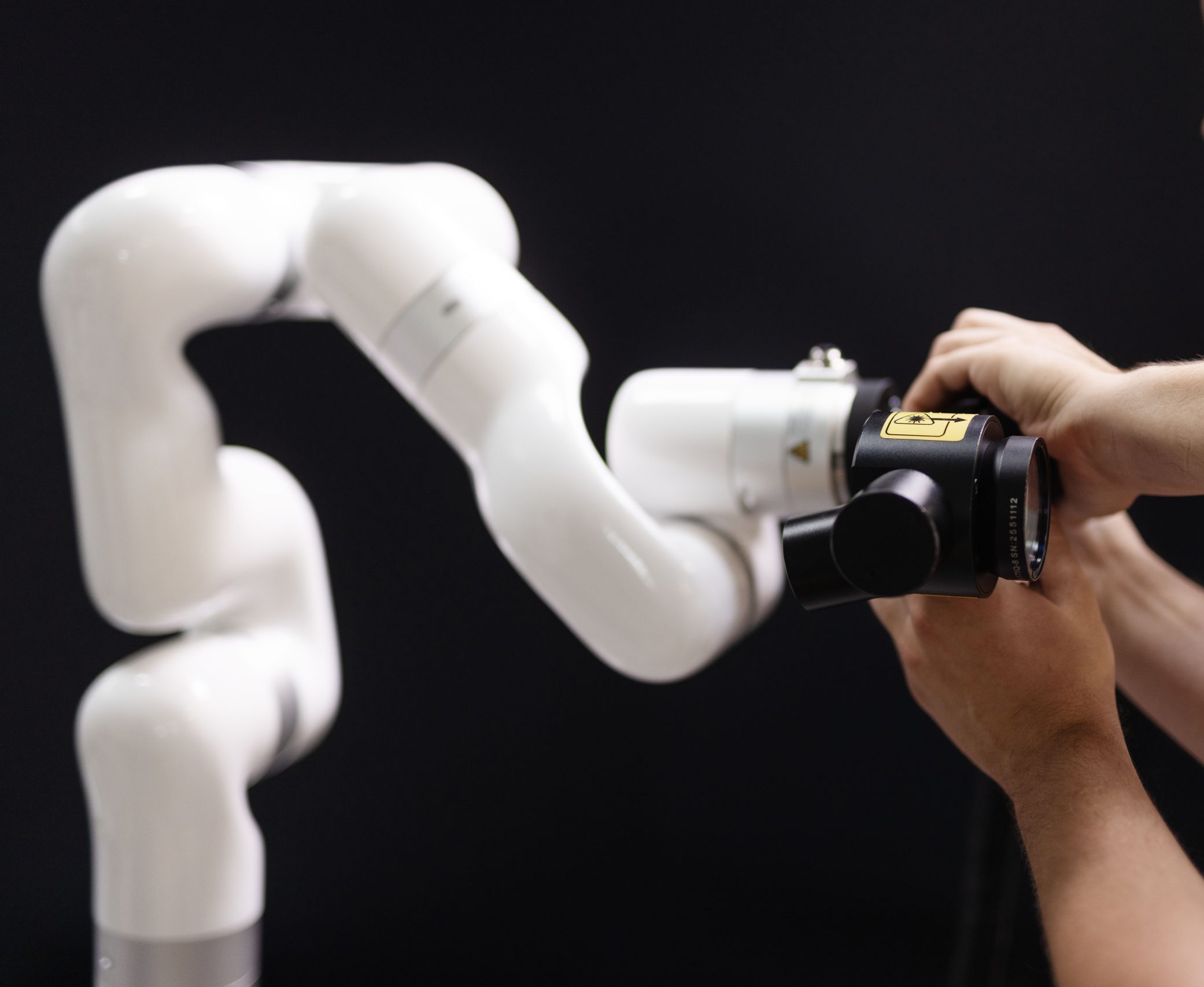

Handheld to Robotic Solution
The Diodela handheld laser cleaning system, integrated with a robot or cobot via a 2-channel logic, is the most affordable solution for clients seeking a lower initial investment and quick ROI. Our laser systems efficiently and precisely remove rust, paint, oil, and contaminants without damaging the base material. Diodela’s technology delivers consistent results across various surfaces, including metals, stone, and concrete. Its user-friendly interface ensures quick setup and operation with wireless or hard-wired options. This system offers precision cleaning, delivering high accuracy in hard-to-reach areas. Enhanced safety features are in place to protect the operator, and the robust design requires low maintenance.
Our Recommendations
Automated Laser Cleaning Gallery
Specifications
| Model | FWS-1000-AS | FWS-1500-AS | FWS-2000-AS | FWS-2500-AS | FWS-3000-AS |
|---|---|---|---|---|---|
| Laser source | Fiber laser | ||||
| Output Power | 1000W | 1500W | 2000W | 2500W | 3000W |
| Power adjustment range | 10-100% | ||||
| Wavelength | 1080 nm | ||||
| Output operation | Continuous / Modulated | ||||
| Modulation frequency | Up to 50 kHZ | ||||
| Power stability | <3% | ||||
| Adjustable wobble (weld width) | 0.1-5 mm | ||||
| Central focus distance | Standard 120 mm (150 mm optional) | ||||
| Cooling | Integrated water cooling | ||||
| Warm-up time | 1 min. | ||||
| Working humidity | <70% (at 40 degrees Celsius) | ||||
| Working temperature | 0-40 degree Celsius | ||||
| Laser welding gun weight | < 1kg | ||||
| Optical cable length | Standard 8 m (up to 15 m optional) | ||||
| Overall systems dimensions | 1200 x 600 x 1300 mm | ||||
| System weight | 180 kg | 185 kg | 190 kg | 195 kg | 205 kg |
| Power supply | Single-phase 230 VAC | Single-phase 230 VAC | Single-phase 230 VAC | Three-phase 400 VAC | Three-phase 400 VAC |
| Avg. power consumption | <3.7 kW | <5.5 kW | <7.4 kW | <9.3 kW | <11.1 kW |
| Stainless steel weld thickness (single pass) | Up to 5 mm | Up to 6 mm | Up to 8 mm | Up to 9 mm | Up to 10 mm |
| Aliuminium weld thickness (single pass) | Up to 4 mm | Up to 5 mm | Up to 6 mm | Up to 7 mm | Up to 8 mm |
| Power | 50W | 100W | 200W | 300W | 500W | 1000W | 1500W(CW) |
|---|---|---|---|---|---|---|---|
| 100 µm Powder paint | 1-2 m² / h | 3-4 m² / h | 5-6 m² / h | 7-8 m² / h | 12-15 m² / h | 20-30 m² / h | 25-40 m² / h |
| 100 µm Rust | 3-4 m² / h | 5-6 m² / h | 7-8 m² / h | 8-10 m² / h | 15-17 m² / h | 35-38 m² / h | 40-50 m² / h |
You Need Custom Solution?
Our laser experts will help you choose the most efficient solution for your business needs, provide comprehensive training, and offer consultation on any question.
